API 600 Oil Gas Water Handwheel OS&Y Non Rising Stem Solid Wedge Soft Metal Seat Carbon Steel Lcc Lcb A216 Wcb 304 316L Cast Flanged Stainless Steel Gate Valve

100% made in our factory! Get the best quality API 600 Oil Gas Water Gate Valve with non-rising stem and solid wedge. Available in various materials like carbon steel, stainless steel, and more. Shop now!
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Our Advantages
  • FAQ
Overview

Basic Info.

Model NO.
valve
Material
Carbon Steel
Connection Form
Flange
Pressure
Ordinary Temperature
Actuator
Manual
Seal Surface
Wedge Gate Valve
Thread Position of Valve Rod
Outside Gate Valve
Usage
Regulation, Safety, Emptying, Drain, Temperature Control, Flow Control
Standard
API 600
Application
Industrial Usage, Water Industrial Usage, Household Usage
Process
Casting
Stem
OS&Y
Carbon Steel
A216 Wcb
Stainless Steel
CF8 CF8m
Transport Package
by Plywooden Case
Specification
ce
Trademark
CZIT
Origin
China
HS Code
8481804090
Production Capacity
1000tons Per Month

Packaging & Delivery

Package Size
10.00cm * 10.00cm * 15.00cm
Package Gross Weight
1.000kg

Product Description

API 600 oil gas water handwheel OS&Y non rising stem solid wedge soft metal seat carbon steel LCC LCB a216 wcb 304 316l cast flanged stainless steel gate valve

 Specification
API 600 Oil Gas Water Handwheel OS&Y Non Rising Stem Solid Wedge Soft Metal Seat Carbon Steel Lcc Lcb A216 Wcb 304 316L Cast Flanged Stainless Steel Gate Valve
Applicable standards:
Steel gate valves,API 600/API 6D
Steel gate valves, ISO 10434/ISO 14313
Steel valves, ASME B16.34
Face to face, ASME B16.10
End flanges, ASME B16.5
Butt weld ends, ASME B16.25
Inspection and test, API 598/API6D


Design description:
Full port design
OS&Y, outside screw and yoke
BB, bolted bonnet
Flexible wedge, fully guided
Choice of solid or split wedge
Renewable seat rings
Forged T-head stem
Rising stem and non-rising handwheel
Flanged or buttwelding ends
Available with BG operator
Size:1/2"-48"
Pressure:150lb-2500lb

Data sheet-Material list


No Part Name Carbon steel Cr-Mo alloy Low temperature carbon steel Stainless steel
1 Body A216 WCB A217-WC6 A352-LCB A351 CF8M
2 Bonnet A216 WCB A217-WC6 A352-LCB A351 CF8M
3 Wedge A216 WCB+CR13 A217-WC6+HF A352-LCB+CR13 A351 CF8M
4 Stem A182-F6a Cr-Mo-V A182 -F6a A439 D-2
5 Seat ring A105+CR13 A182-F11+HF A350-LF2+CR13 A182 F316L/overlay
6 Stem back seat A276-420 A276-304 A276-420 A276 -420
7 Bonnet gasket   Sprial wound Graphite+304)
8 Bonnet stud A193-B7 A193-B16 A320-L7 A193 B8
9 Bonnet stud nut A194-2H A194-7 A194-4 A194 -8
10 Packing  Graphite
11 Gland A276-420 A276-304 A276-420 A276 -316
12 Gland flange A216 WCB A217-WC6 A352-LCB A351 CF8M
13 Eyebolt Pin Carbon steel A276-420 Carbon steel Stainless steel
14 Eyebolt Carbon steel A193-B7 Carbon steel A193-B8
15 Eyebolt nut Carbon steel A194-2H Carbon steel Stainless steel
16 Grease fitting Brass +Steel Stainless steel
17 Yokesleeve
18 Yokesleeve jam nut Carbon steel
19 Handwheel Malleable iron Ductile iron
20 Handwheel nut Carbon steel

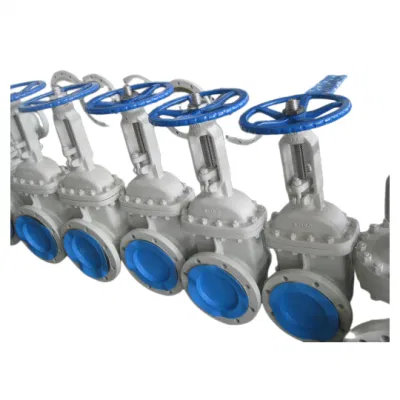

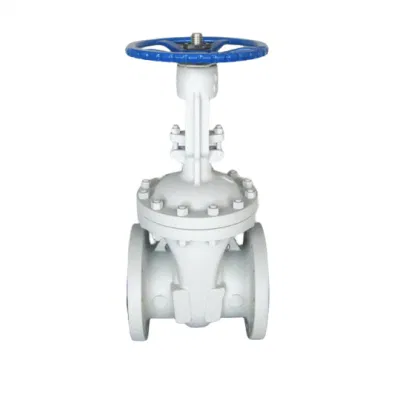

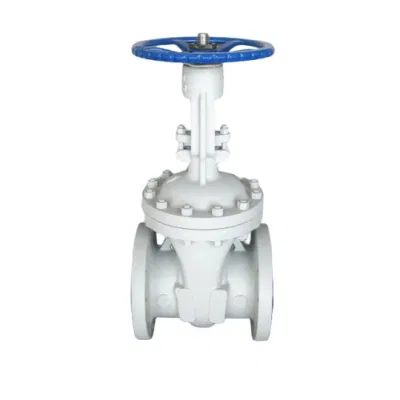

Detail photos
API 600 Oil Gas Water Handwheel OS&Y Non Rising Stem Solid Wedge Soft Metal Seat Carbon Steel Lcc Lcb A216 Wcb 304 316L Cast Flanged Stainless Steel Gate Valve
API 600 Oil Gas Water Handwheel OS&Y Non Rising Stem Solid Wedge Soft Metal Seat Carbon Steel Lcc Lcb A216 Wcb 304 316L Cast Flanged Stainless Steel Gate Valve
API 600 Oil Gas Water Handwheel OS&Y Non Rising Stem Solid Wedge Soft Metal Seat Carbon Steel Lcc Lcb A216 Wcb 304 316L Cast Flanged Stainless Steel Gate Valve

Marking, name plate, packing

API 600 Oil Gas Water Handwheel OS&Y Non Rising Stem Solid Wedge Soft Metal Seat Carbon Steel Lcc Lcb A216 Wcb 304 316L Cast Flanged Stainless Steel Gate Valve
API 600 Oil Gas Water Handwheel OS&Y Non Rising Stem Solid Wedge Soft Metal Seat Carbon Steel Lcc Lcb A216 Wcb 304 316L Cast Flanged Stainless Steel Gate Valve

API 600 Oil Gas Water Handwheel OS&Y Non Rising Stem Solid Wedge Soft Metal Seat Carbon Steel Lcc Lcb A216 Wcb 304 316L Cast Flanged Stainless Steel Gate Valve
API 600 Oil Gas Water Handwheel OS&Y Non Rising Stem Solid Wedge Soft Metal Seat Carbon Steel Lcc Lcb A216 Wcb 304 316L Cast Flanged Stainless Steel Gate Valve




Our Advantages

Why Choose us



7*24 service time
Trace shippment each week
Professional QC QA team, more than 5 people. Inspect all goods before delivery
REFUND MONEY IF REJECTION BECAUSE OF QUALITY
PAYMENT TERM CAN BE L/C, O/A, T/T

API 600 Oil Gas Water Handwheel OS&Y Non Rising Stem Solid Wedge Soft Metal Seat Carbon Steel Lcc Lcb A216 Wcb 304 316L Cast Flanged Stainless Steel Gate Valve

OUR FACTORY SHOW

CZIT GROUP(3 factories, 300+workers, 200 +customers, 20+ years experience)
5000tons production capacity each month, fast delivery.
2-pc,3-pc ball valves ,we have lots of stock, they are ready to ship


API 600 Oil Gas Water Handwheel OS&Y Non Rising Stem Solid Wedge Soft Metal Seat Carbon Steel Lcc Lcb A216 Wcb 304 316L Cast Flanged Stainless Steel Gate Valve


CERTIFICATE SHOW

API 600 Oil Gas Water Handwheel OS&Y Non Rising Stem Solid Wedge Soft Metal Seat Carbon Steel Lcc Lcb A216 Wcb 304 316L Cast Flanged Stainless Steel Gate Valve

CUSTOMER FEEDBACK


What is business for us? Not only for earn money, it is for sharing. To meet more better us together.
For us, customers would like cooperate with us, we are very happy and appreciated. Thank you very much for your trust us. We will do what we promise.
Since we treat business very serious, customers would like establish long term relationship with us. And when they gave us FIVE STAR comments, we really very very moved. We will do our best to do more better.


API 600 Oil Gas Water Handwheel OS&Y Non Rising Stem Solid Wedge Soft Metal Seat Carbon Steel Lcc Lcb A216 Wcb 304 316L Cast Flanged Stainless Steel Gate Valve
OUR PROJECTS SHOW


Our products can be used in Petrochemical industry;aviation and aerospace industry;pharmaceutical industry,gas exhaust; power plant;ship building;  water treatment, etc.
Here is some projects samples for your reference.



API 600 Oil Gas Water Handwheel OS&Y Non Rising Stem Solid Wedge Soft Metal Seat Carbon Steel Lcc Lcb A216 Wcb 304 316L Cast Flanged Stainless Steel Gate Valve

FAQ



FAQ

Q: Can you supply Form e, Certificate of origin?
A: Yes, we can supply.

Q: Can you supply invoice and CO with chamber of commerce?
A: Yes, we can supply.

Q: Can you accept L/C deferred 30, 60, 90days?
A: We can.

Q: Can you accept O/A payment?
A: We can.

Q: Can you supply samples?
A: Yes, some samples are free.

Q: Can you supply the products which comply with NACE?
A: Yes, we can.

Q: Can you visit your factory
A: Yes, sure. Welcome.

Q: Can you inspect the goods before delivery
A: Yes, sure. Welcome to our factory inspect the goods. Also accept third party inspection, such as SGS, TUV, BV etc.

Q: Can you supply MTC , EN10204 3.1/3.2 certificate?
A: Yes, sure. we can

Q: Do you have ISO
A: Yes, we have

Q: Can you accept OEM?
A: Yes, we can

Q: Can you accept marking our LOGO?
A: Yes, we can

Q: What is your MOQ?
A: 1pcs for standard fittings and flanges.

Q: Can you support to design our piping system?
A: Yes, we would like to your partner and our engineer will help.

Q: Can you offer data sheet and drawing?
A: Yes, we can

Q: Can you ship by carrier or airline?
A: Yes, we can. And we also can ship by train

Q: Can you combine your order with other supplier?  Then ship together?
A: Yes, we can. We would like help you ship together to save your time and money

Q: Can you shorten delivery time?
A: If very very urgent, please confirm with sales. We would like arrange extra-working time for you.

Q: Can you marking on package as per IPPC?
A: Yes, we can

Q: Can you mark "MADE IN CHINA" on products and packing?
A: Yes, we can

Q: Can you supply semi-finished products?
A: Yes, we can

Q: We need some test sample pieces for each heat number, Can you supply?
A: Yes, we can

Q: Can you supply heat treatment report?
A: Yes, we can


Other valves, we can supply

Product name ball valve, gate valve, check valve, plug valve, globe valve, butterfly valve, control valve ,strainers,etc
Standard API, DIN, JIS, GOST ,etc
Material Stainless  steel: A351 CF8, A351 CF8M, A182F304, A182F316,etc
Carbon steel: A105, A216 WCB, G25, etc
Alloy steel:  A182 F11, A182 F22, A182 F12, A182 F5, A182 F91,etc
Size: 1/2"-48"
Thickness 150#-2500#, PN6-PN160
Medium Water/oil/gas/air/steam/weak acid alkali/acid alkaline substances
Connection mode  internal thread/external thread/flange/welded/wafer
Surface Annealing, pickling, polishing, bright, sand  blast,hair  line, brush, satin,snow sand, titanium, etc
Price term Ex-Work, FOB, CNF, CFR, CIF, etc
Payment term TT, L/C, Western Union
Export  to Singapore, USA, Morocco, Thailand,Australia,Viet  Nam, Italy,Iran, India, Ukraine, Nigeria,Egypt,Mexico,Pakistan,Tunis,
Lebanon, Dubai,Iraq, Syria,South  Africa,South Korea, France, Spain, Turkey, Bulgaria, etc
Application Stainless steel valves widely used in petroleum,chemical industry,electric power, boiler,high temperature resistant,
low temperature resistant,corrosion resistant.
The size of  the valves can be made according to clients requirements.
Contacts If you have any  questions, please feel free to contact me.your enquiry  will get prompt attention.we will do out best  to
quote you a more competitive price and short delivery time .
