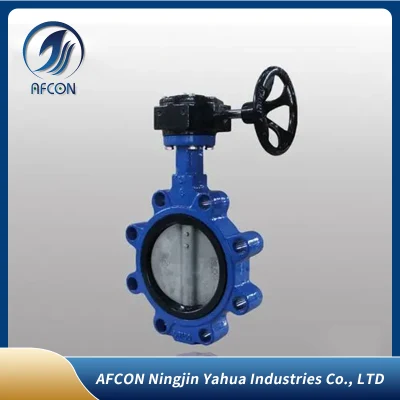

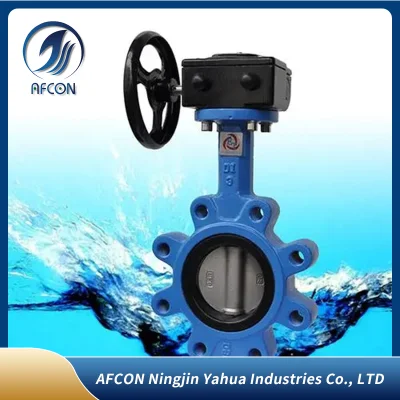

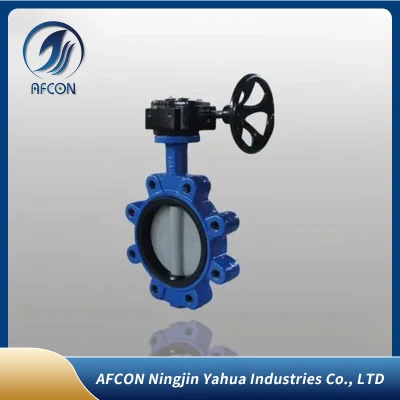

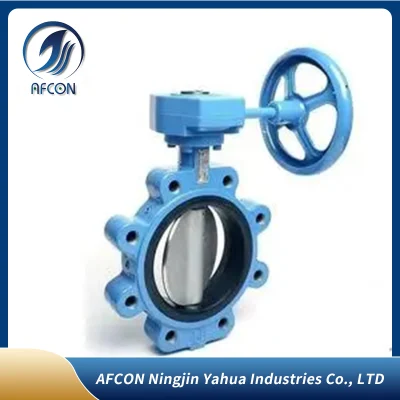

Carbon Steel Lug PTFE Gearbox B16.5 ASME 150 Butterfly Valve

Looking for a high quality Carbon Steel Lug PTFE Gearbox B16.5 ASME 150 Butterfly Valve? Look no further! We are a reputable factory with top-notch products.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Function and Characters
  • FAQ
Overview

Basic Info.

Work Pressure
Low Pressure (Pn<1.6mpa)
Working Temperature
Normal Temperature (-40°C<T<120°C)
Material of Seal Surface
Soft Sealed
Valve Body
Casting
Application
Industrial Usage, Water Industrial Usage, Household Usage
Body
Gg25/Ggg40/Wcb
Stem
Ss416/Ss431/SS304/SS316
Disc
Ggg40/CF8/CF8m/C954/C958
Seat
EPDM/NBR/Viton
Transport Package
Plywood Cases
Specification
CE, ISO, SGS, FM, UL
Trademark
TEC
Origin
Shandong, China
Production Capacity
3000PCS/Month

Product Description

Product Description
The wafer soft-sealing ANSI manual lug butterfly valve produced by  Factory is suitable the temperature≤80ºC and pressure≤1.6Mpa. It is widely used in food , industry, medicine, chemical industry, power, paper and other industry about our life.
Carbon Steel Lug PTFE Gearbox B16.5 ASME 150 Butterfly Valve

Carbon Steel Lug PTFE Gearbox B16.5 ASME 150 Butterfly Valve Carbon Steel Lug PTFE Gearbox B16.5 ASME 150 Butterfly Valve Carbon Steel Lug PTFE Gearbox B16.5 ASME 150 Butterfly Valve
Materials list
Item Part name                                           Materials
1 Clamping ring         Zine plated steel / Stainless steel
2 O-Ring         EPDM / NBR / Neoprene / Viton
3 Bushing         PTFE / Lubricated bronze
4 Stem         Zine plated steel / Stainless steel
5 Body         Cast iron / Ductile iron / Stainless steel
6 Disc         Ductile iron(nickel plated) / Stainless steel / AL-Bronze
7 Seat         EPDM / NBR / Neoprene / Viton
Carbon Steel Lug PTFE Gearbox B16.5 ASME 150 Butterfly Valve



Function and Characters




This valve is mainly used for connection and interruption for the media such as water, oil and others in the pipeline. And the main function of this valve is to stop the medium from back off and bleeding from the container.
The face to face of this valve is short, as well as with a small volume and light weight.
The disc can be closed quickly.
It can be used in both horizontal and vertical piping, which is also convenient for installation.
With a small fluid resistance, the valve is unimpeded.
It is flexible, with good sealing.
The structure is simple and compact, and the appearance is beautiful.
The service life is long with high reliability.

Carbon Steel Lug PTFE Gearbox B16.5 ASME 150 Butterfly Valve
Carbon Steel Lug PTFE Gearbox B16.5 ASME 150 Butterfly ValveCarbon Steel Lug PTFE Gearbox B16.5 ASME 150 Butterfly ValveCarbon Steel Lug PTFE Gearbox B16.5 ASME 150 Butterfly ValveCarbon Steel Lug PTFE Gearbox B16.5 ASME 150 Butterfly ValveCarbon Steel Lug PTFE Gearbox B16.5 ASME 150 Butterfly ValveCarbon Steel Lug PTFE Gearbox B16.5 ASME 150 Butterfly Valve





FAQ



Q: What is your payment term?
A: T/T 30% down payment, balance to be paid before shipment. Or L/C.

Q: How long is your delivery time?
A: Depends on QTY.

Q: Are you a manufacturer or trading company? How to reach your company from Beijing?
A: We are a well-experienced manufacturer. And it is about 1.5 hours by high speed train from
Beijing Nan Station.

Q: Do you provide samples? Is it free or charged?
A: Yes, we can offer sample free but shipping charges covered by customer.

Q: If products have some quality problem, how would you deal with?
A: We will responsible for all the quality problems if it is not human causes.
