Europe Standard Strong Lifting Force Chain Drive Garage Door Operator with High Quality

Looking for a Europe Standard Strong Lifting Force Chain Drive Garage Door Operator with High Quality? Look no further! We are a factory specializing in top-notch garage door operators.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
Matic serious
Structure and Working Principle
Brush
Certification
Ce , Ce - Red, LVD, EMC,En12453&12445, TUV, C-Tick
Brand
OEM
Lifting Speed
160mm/S
Case Material
Plastic / Aluminum
Base Material
Steel
Color
Black / Grey / Aluminum / Customizing Available
Rail Length
3000~4000mm
Drive Option
Chain Drive / Belt Drive
Transport Package
Carton/ Wooden Box/ Pallet
Specification
600N / 1000 / 1200N
Trademark
OEM
Origin
China
HS Code
8501520000
Production Capacity
1000000sets / Year

Product Description

Europe Standard Strong Lifting Force Chain Drive Garage Door Operator with High Quality

---------------------------------------------------------------
MATIC

600N / 1000N / 1200N
600N Speed / 1000N Speed
Home automation for garage doors


Europe Standard Strong Lifting Force Chain Drive Garage Door Operator with High Quality

Europe Standard Strong Lifting Force Chain Drive Garage Door Operator with High Quality
Model 600N / 600N Speed 1000N / 1000N Speed 1200N
Input voltage 220-240V / 110-127V , 50-60Hz
Max. opening speed 160mm/s or 200mm/s ( Speed model)
Max. door height 2400-5000mm
Bottom base material Metal
Drive mechanism Chain/Belt
Max. door size 10 m2 15 m2 18 m2
Max. door load 80 kg 100 kg 130 kg


Europe Standard Strong Lifting Force Chain Drive Garage Door Operator with High Quality

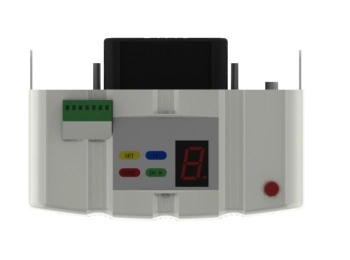

Soft-start/stop More Information Display
Automatic Closing Time Setting Reversal Force Setting
Maintenance Alarm Terminal Devices Supported
Transformer Overload Protection 3 Min. L.E.D Off Delay
433MHz/Rolling Code Photo Cell ON/OFF Setting
Electronic Travel Limit Setting
Europe Standard Strong Lifting Force Chain Drive Garage Door Operator with High Quality
Have you ever met following problems:
1, Losing traveling limit after hundreds operation?
2, Doors couldn't totally close or open after hundreds operation?
3, Openers need to be re-programed after hundreds operation?

All these won't happen to our openers, all because we have
Europe Standard Strong Lifting Force Chain Drive Garage Door Operator with High Quality
Less maintenance & Less traveling deviation with Longer lifetime

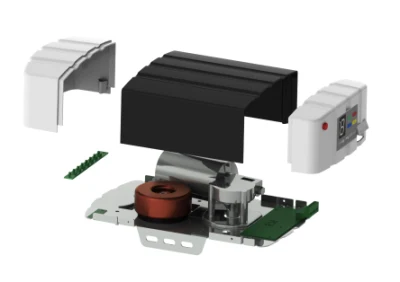

Build-in twin-encoder & Synchronizing device
Higher precision of position limit
No more external mechanical switch
Self-adjustment for different doors with different weights, springs and maintenance conditions.

Europe Standard Strong Lifting Force Chain Drive Garage Door Operator with High Quality
Europe Standard Strong Lifting Force Chain Drive Garage Door Operator with High Quality
Europe Standard Strong Lifting Force Chain Drive Garage Door Operator with High Quality
Europe Standard Strong Lifting Force Chain Drive Garage Door Operator with High Quality
