Handle Gear Operated Flanged Casting Top Entry Ball Valve

Looking for a Handle Gear Operated Flanged Casting Top Entry Ball Valve? We are a factory specializing in producing high-quality valves for your industry needs.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Structure
Oil Seal Ball Valve
Type
Fixed Ball Valve
Function
Shutoff
Temperature
Normal Temperature
Application
Industrial Usage, Water Industrial Usage, Household Usage
Characteristic
Top Entry Ball Valve
Design & Manufacture
API 6D, ASME B16.34
Pre-Temp. Rating
ASME B16.34
Face to Face
ASME B16.10
Ends Connection
RF, Rtj, Bw, NPT, Sw
Inspect & Test
API 598
Certificate 1
Dnv CE 0575
Certificate 2
ISO 9001: 2008
Transport Package
Sea Worthy
Specification
API, ANSI, ASME, DIN, JIS etc.
Trademark
VATAC/OEM
Origin
China
HS Code
8481804090
Production Capacity
8000ton Per Year

Product Description

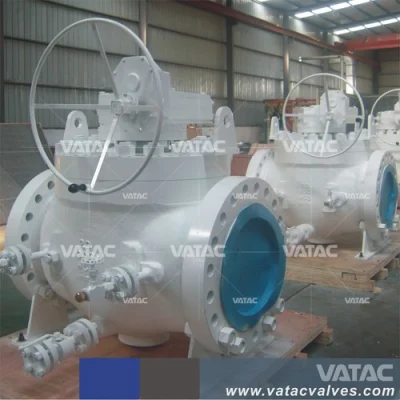

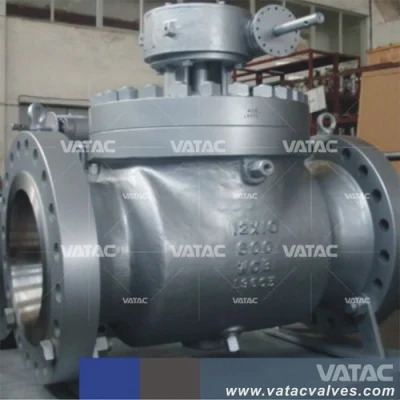

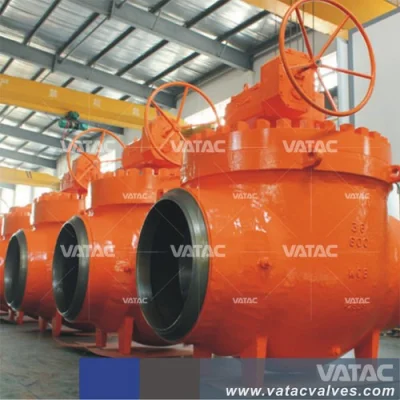

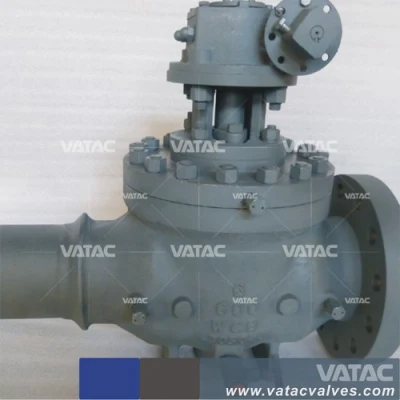

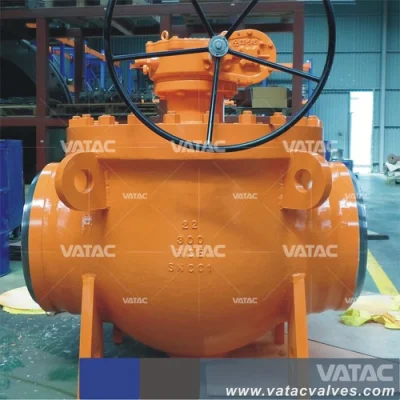

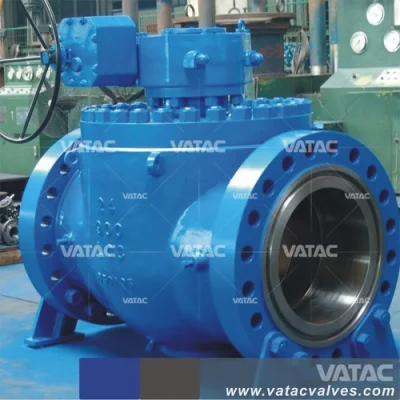

Handle Gear Operated Flanged Casting Top Entry Ball Valve
Pneumatic Operated Top Entry Ball Valve Conform to API 6D and ASME B16.34.
They are tested according to API 598, and marked as per MSS SP-25

1. Construction is as follows

- Full Port or Reduce Port
- One Piece Body
- Top Entry
- Floating or Trunnion Mounted
- Bolted Bonnet with spiral-would gasket
- Fire Safe Design
- Anti-static Design & Blow-out proof stem
- Screwed Ends to ASME B1.20.1
- Socket Weld Ends to ASME B16.11
- Butt Weld Ends to ASME B16.25
- Flanged Ends to ASME B16.5

2. Main Part & Materials

Part Names Part Materials
Body WCB/A105 LCB/LF2 WC6/F22 CF8/F304 CF8M/F316 CF3/F304L CF3M/F316L
Bonnet WCB/A105 LCB/LF2 WC6/F22 CF8/F304 CF8M/F316 CF3/F304L CF3M/F316L
Ball A105+ENP SS304 F22 SS304 SS316 SS304L SS316L
Stem A105 F304 F6a F304 F316 F304L F316L
Seat/Seat Ring PTFE/PPTFE/NYLON/DEVLON/PEEK OR METAL
Packing Graphite/PTFE
Gasket SS304+Graphite/SS304+Graphite
Bolts/Nuts B7/2H L7/4 B16/4 B8/8 B8M/8M B8/8 B8M/8M
Suitable Medium W.O.G etc. HNO3, CH3OOH etc.
Suitable Temperature -29~425 °C -46~340 °C -46~340 °C -196~427 °C -196~427 °C -196~427 °C -196~427 °C

3. Normal Pressure Rating

PN10~PN420, CLASS150~2500

4. Normal Size Range

DN15~DN600, 1/2"~24"

5. Pictures

Final Inspection
Handle Gear Operated Flanged Casting Top Entry Ball Valve
Shipment
Handle Gear Operated Flanged Casting Top Entry Ball Valve
