High-Temperature Type Ductile Cast Iron Cylinder Double Acting/Single Acting/Spring Returnscotch Yoke Heavy Duty Pneumatic Actuator CE/ISO9001/IP67

Our high-quality High-Temperature Type Ductile Cast Iron Cylinder Double Acting/Single Acting/Spring Return Scotch Yoke Heavy Duty Pneumatic Actuator CE/ISO9001/IP67 is produced at our factory. Contact us for more information.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Piston Material
Alloy Steel
Shaft Material
Nickle Alloy Plated Steel
Torque
160000nm
Air Pressure
8bar
Transport Package
Bubble Wrap, Carton Box, Plywood Case
Specification
CE, ISO9001, FDA
Trademark
KT
Origin
Zhejiang
HS Code
8412390000
Production Capacity
10, 000PCS/Month

Product Description

Scotch Yoke Heavy Duty Pneumatic Actuator

Features

1. Versatility
2. Efficient
3. Safety
4. Corrosion Resistance
5. Highly Sealed
6. Long Service Life

Specifications

1). Hydraulic Actuator Oil Supply Pressure: Up to 100 bar ( 1449psi )
2). Pneumatic Actuator Air Supply Pressure: Up to 10 bar ( 116psi )
3). Output Torque: Up to 160000 Nm ( 11790261 bf-in )
4). Temperature Range:
      Standard: -20°C ~ +80°C
      Low Temperature: -40 °C~ +80°C
      High Temperature: -20 °C~ +120°C
5). Type: Double Acting, Single Acting ( Spring Return )
6). Optional accessories: solenoid valves, limited switch, electric position
7). Lubrication: All the moving parts are coated with lubricants, extending their service life

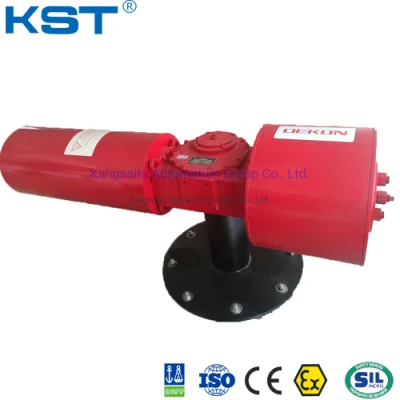

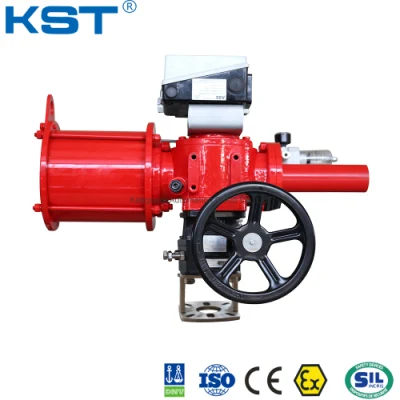

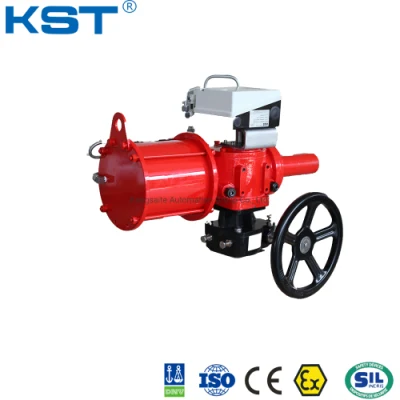

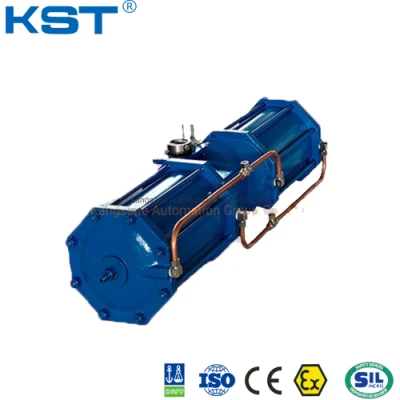

Products Show

High-Temperature Type Ductile Cast Iron Cylinder Double Acting/Single Acting/Spring Returnscotch Yoke Heavy Duty Pneumatic Actuator CE/ISO9001/IP67


Brand: KT/OEM
Applicable Media: Water, Oil, Gas, Nitric Acid, Acetic Acid
Certification: CE/API/DNV/FDA/ISO9001-2008
Sample Testing: One Sample for free( Under $10), Freight Collect
Packing: Plastic Bag, Carton & Plywood Case/According to customers' requirement.
Payment:  T/T, L/C, D/P, Western Union, Paypal
Port:  NINGBO/SHANGHAI, Customers' Request
Delivery Time: Within 35days after receiving T/T deposit Payment
Term of Delivery: FOB/CNF/CIF, Customers' Request
