Lunyee 600mm Stroke Customized 2000n IP65 Quiet Worm Drive Electric 12V 24V DC Motor Linear Actuator for Industrial Equipment

Looking for a reliable 600mm stroke customized linear actuator for industrial equipment? Our factory produces IP65 quiet worm drive electric 12V 24V DC motors to meet your needs.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product Parameters
  • Applications
  • Company Profile
  • FAQ
Overview

Basic Info.

Model NO.
LY022
Output Power
50W
Speed(Rpm)
2500
Speed
7~20mm/S
Continuous Current(a)
0.8~2.7A(24V)
Efficiency
Ie 3
Type of Duty
10%,2min.on / 18min.off
Installation Dimension
Stroke+125mm
Operation Temperature
-15~45
Usage
Boat, Car,Industrial Field
Transport Package
Carton
Specification
60X40X20 cm
Trademark
Lunyee
Origin
Jiangsu, China
Production Capacity
1000pieces/Week

Product Description

Product Description

Lunyee 600mm Stroke Customized 2000n IP65 Quiet Worm Drive Electric 12V 24V DC Motor Linear Actuator for Industrial Equipment

Lunyee 600MM Stroke customized 2000N IP65 Quiet Worm Drive Electric 12V 24V DC Motor Linear Actuator for industrial equipment

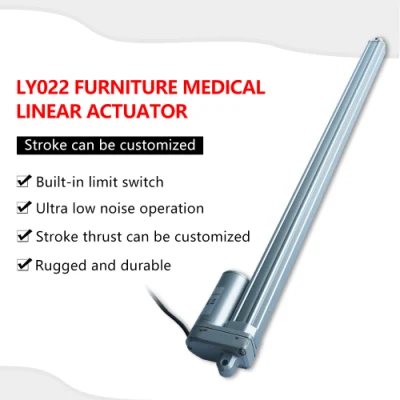

The appearance of the LY022 linear actuator is made of exquisite aluminum alloy material, and the precise structure design makes it have a more solid appearance, and the high load capacity can reach 2000N. Adopting DC permanent magnet motor, a variety of adaptive power supply options are 48V/36V/24V/12V, and the itinerary can be customized to meet different usage scenarios. The high protection level of IP65 is suitable for a variety of harsh industrial operating environments, and the dual-turbine transmission structure fundamentally solves the major problems during its operation. The built-in signal feedback type adopts double Hall pulse sensor electric push rod to realize the programming reading of the linear actuator running distance (customizable), which can realize the zero error lifting and lowering of multiple electric linear actuators at the same time to achieve the complete effect.
Lunyee 600mm Stroke Customized 2000n IP65 Quiet Worm Drive Electric 12V 24V DC Motor Linear Actuator for Industrial Equipment

Product Parameters

Lunyee 600mm Stroke Customized 2000n IP65 Quiet Worm Drive Electric 12V 24V DC Motor Linear Actuator for Industrial Equipment

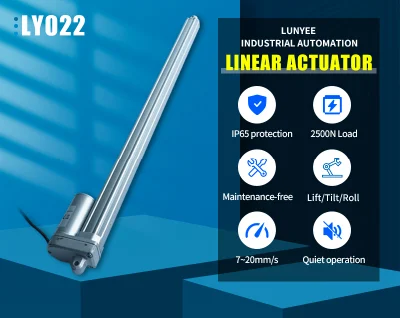

Product Features
1. DC permanent magnet motor, simple and compact structure, made of pure metal stainless steel seamless steel tube, sturdy and durable;
2. Optional input voltage: 12V/24V/36V/48V DC;
3. According to the use requirements, the optional speed is from 7mm/s to 20mm/s;
4. Customizable itinerary (Stroke);
5. The maximum load is 2500N;
6. Normal temperature: -15 ºC to 45 ºC;
7. Optional signal feedback type: potentiometer, Hall;
8. With built-in travel switch, there is a good self-locking function, no sliding or slipping;
9. The equipment has an overcurrent protection function;
10. The protection level is IP65:
(1) Product powder alloy gear, high strength, long life, wear resistance;
(2) Passed CE certification, salt spray, waterproof, temperature test, with anti-corrosion function;
11. The slider can be customized before and after the product, and the selection is flexible and unlimited;
12. This product is widely used in various quiet environment places.
Lunyee 600mm Stroke Customized 2000n IP65 Quiet Worm Drive Electric 12V 24V DC Motor Linear Actuator for Industrial Equipment
Input Voltage
48V/36V/24V/12V/ DC
Output Power
50W
Current
0.8~2.7A(24V)
Load Capacity
2000N
Speed(RPM)
2500RPM
Speed
7~20mm/s
Type of Duty
10%,2min.on / 18min.off
Limit switches
Inner
Installation dimension
stroke+125mm
Stroke
Customize
Operation Temperature
-15ºC~45ºC
Protection Class
IP65
Efficiency
IE 3
Lunyee 600mm Stroke Customized 2000n IP65 Quiet Worm Drive Electric 12V 24V DC Motor Linear Actuator for Industrial Equipment

Shopping guide:

The first step is to determine the voltage: there are four options for voltage: 48V/36V/24V/12V.
The second step is to determine the stroke of the putter, which is the range of motion of the putter, which can be customized.
The third step is to determine the pushing speed of the putter. Different speeds correspond to different strengths. The details are introduced. You can consult online or leave a message for me.
The power of the putter is related to the speed. The faster the speed, the smaller the power, and the slower the speed, the greater the power. The two are inversely proportional. Buyers can choose the appropriate speed and thrust motor according to the following parameter table:
Lunyee 600mm Stroke Customized 2000n IP65 Quiet Worm Drive Electric 12V 24V DC Motor Linear Actuator for Industrial Equipment

Applications

Lunyee 600mm Stroke Customized 2000n IP65 Quiet Worm Drive Electric 12V 24V DC Motor Linear Actuator for Industrial Equipment

Wide application of electric linear actuators

As an innovative product of emerging technology, electric actuators have a huge impact on the progress of human science and technology. Now electric push rods have been widely used by humans, and electric push rods can be used wherever body position adjustment is required. At present, the world's mature application areas are:
1. Furniture field:
sofas, chairs for the elderly, lazy chairs, foot bath chairs, home beds, beauty beds, massage chairs, massage beds, TV racks, electric beds, theater sofas, etc.
2.Office furniture field:
desks, smart desks, cabinets, office chairs, projection instruments, laboratory tables, work tables,
laboratory tables, etc.
3. Industrial technology field:
door opener, window opener, sweeper, agricultural harvester, yacht, automobile, stage, etc.

Company Profile

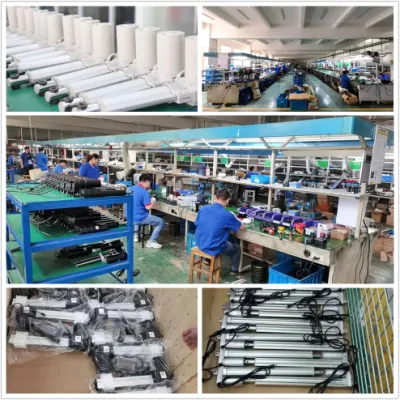

Lunyee 600mm Stroke Customized 2000n IP65 Quiet Worm Drive Electric 12V 24V DC Motor Linear Actuator for Industrial EquipmentLunyee Group focuses on the design, development, production and sales of industrial factory automation system solutions. Our main products are AC motors, DC motors and linear actuators. Among them, AC motors mainly include small AC geared motors and micro AC geared motors; DC motors mainly include brushed DC motors and brushless DC motors; linear actuator series mainly include medical electric actuators, industrial actuators, furniture actuators, and controllers System, manual controller, etc.


FAQ

Lunyee 600mm Stroke Customized 2000n IP65 Quiet Worm Drive Electric 12V 24V DC Motor Linear Actuator for Industrial EquipmentQ: Are you a trading company or a manufacturer?
A: We are a motor manufacturer in China for 15 years.

Q: How to order?
A: Send us an inquiry → receive our quotation → negotiate details → confirm samples → sign a contract/deposit → mass production → prepare a car → balance/delivery → further cooperation

Q: How about the sample order?
A: Our company provides sample gift service. After you contact us to place the sample order, after the formal order is placed, our company will refund the sample order fee.

Q: How long does it take for delivery, production and transportation?
A: The delivery time depends on the quantity you ordered. Usually 15-25 working days

Q: My package is missing products. what can I do?
A: Please contact our support team, we will confirm your order with the package contents. We are sorry for bringing you inconvenience.

Q: How to confirm payment?
A: Our company accepts payment by T/T and PayPal. If you need other payment methods, please contact us in advance. Our company can accept a deposit of 30%-50%, and the balance can be paid before shipment. If you have other questions, please feel free to contact us, we are happy to help you answer.
