My Series Part-Turn Valve Gear Operator for Ball Butterfly Valves

Our factory produces high-quality My Series Part-Turn Valve Gear Operator for Ball Butterfly Valves. Browse our selection for reliable valve gear solutions.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product Parameters
  • Company Profile
  • FAQ
Overview

Basic Info.

Model NO.
MY
Material
Ductile Iron, Carbon Steel (Customizable)
Painting
Blue, Grey, Black (Customizable)
Transport Package
Plywood Case
Specification
Depends on valves size
Origin
Sichuan, China
HS Code
8483409090
Production Capacity
50000

Product Description

Product Description

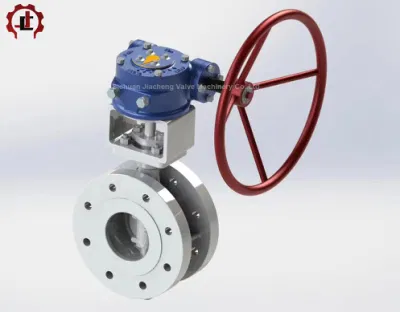

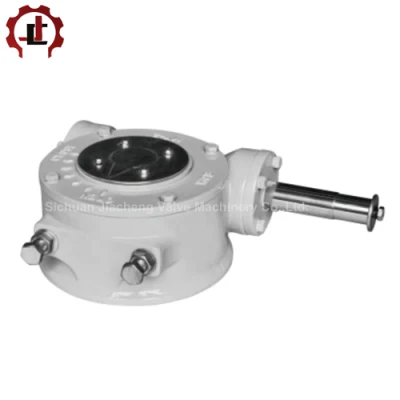

MY series Part-turn worm gearboxes suitable for Ball Valves, Butterfly Valves, Plug Valves,etc. Handwheel can choose according to your requirements.


MY series part-turn worm gearbox has good mechanical quality and steady operating performance. It has high mechanical efficiency, small size with new design, and it's very easy to operate. The flange connecting to valve is according to ISO5211.

Product Parameters



Model MY-000 MY-00 MY-0 MY-1 MY-2 MY-3 MY-4 MY-5 MY-6
Ratio 24:1 33:1 39:1 46:1 49:1 53:1 60:1 62:1 68:1
Flange F07 F10 F12 F14 F16 (F20) F25 F30 F35
φD 90 125 150 175 210 250 300 350 415
PCD D0 70 102 125 140 165 205 254 298 356
N-H-DP 4-M8-15 4-M10-15 4-M12-18 4-M16-24 4-M20-30 8-M16-24 8-M16-24 8-M20-27 8-M30-45
Max stem diameter 20
6×6
30
8×7
38
10×8
45
14×9
55
16×10
65
20×12
80
22×14
105
28×16
115
32×18

Company Profile



My Series Part-Turn Valve Gear Operator for Ball Butterfly ValvesMy Series Part-Turn Valve Gear Operator for Ball Butterfly ValvesMy Series Part-Turn Valve Gear Operator for Ball Butterfly Valves
FAQ



Q: What's your main products?
A: Our main products are worm gearbox, bevel gearbox and spur gearbox for gate valve, globe valve, ball valve, butterfly valve and etc.

Q: How long is your delivery time?
A: Delivery time was depends on the quantity of the order and our inventory, normally is 10~15 days.

Q: Term of payment?
A: T/T 30% in advance, T/T balance before shipment.

Q: Can you provide free sample?
A: Yes, we can provide the sample for free, but the shipping costs need paid by yourself.

Q: Could you specially design and produce according to client's requirements?
A: Yes, we can

If any other questions about our products, welcome to contact us.
