Professional Slewing Bearing Yaw Bearing Slewing Drives Worm Drive

Looking for high-quality professional slewing bearings, yaw bearings, and slewing drives? Look no further! We are a factory that produces top-notch worm drives.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Our Advantages
  • Packaging & Shipping
Overview

Basic Info.

Model NO.
Socare-ESD Series 5
Type
Worm Reducer
Output Speed
1.47rpm
Holding Torque
72.3kn.M
Output Torque
12.24kn.M
Tilting Moment Torque
135.6kn.M
Transport Package
Exporting Box
Specification
ISO, CE, SGS, BV
Trademark
SoCare
Origin
China
HS Code
8483402090
Production Capacity
5000PCS/Month

Product Description

Product Description

Product Description:

Model






Socare 1






Place of Origin

Qingdao,China

Brand

Slewing Drive

Delivery Time

7 days

Material

42CrMo,50Mn

Output Torque

1.46kN.m

Tilting Moment Torque

13.5kN.m

Holding Torque

10.4kN.m

Static Axial Rating

133KN

Static Radial Rating

53KN

Dynamic Axial Rating

32KN

Dynamic Radial Rating

28 KN

Gear Ratio

71:1

Efficiency

40%

Hydraulic Motor

Yes

HS Code

8483402090
Professional Slewing Bearing Yaw Bearing Slewing Drives Worm Drive Professional Slewing Bearing Yaw Bearing Slewing Drives Worm Drive Professional Slewing Bearing Yaw Bearing Slewing Drives Worm Drive

Slewing Drive:
The title of Slewing Drive is no uniform, it also called: Slewing gear, rotary drive, rotary drive axle, rotary drive vice, slew drive, slewing gear, and rotary drive unit. At present the majority of such devices: The Slewing Drive.

In addition to the field of use in the daily solar power systems are usually used for Special vehicle, heavy-duty flat-panel truck, container cranes, truck mounted crane, automobile crane and aerial vehicles, cranes, gantry cranes, small wind power stations, space communications, satellite receiver, etc. . The Slewing Drive in the solar photovoltaic industry, the general configuration DC planetary reduction motor or AC geared motors; Main configuration of the hydraulic motor as a power-driven construction machinery.
Professional Slewing Bearing Yaw Bearing Slewing Drives Worm Drive

Rotary speed reducer/slewing drive Main fetures:

1.large speed ratio range

2.small volume,low weight ,saving space for mounting.

3.high efficiency,high mechanical strength and high quality aluminum alloy housing

4.long life service,large output torque,low noise and little vibration

5.low temperature rise,omnibearing installation ,easy to connect with other machinery.

6.high carry ability,elegant apperance.

7.CE standard,input power can be 0.06KW-15KW

8.stable transmission

Professional Slewing Bearing Yaw Bearing Slewing Drives Worm Drive
Socare Slewing Drives Features:

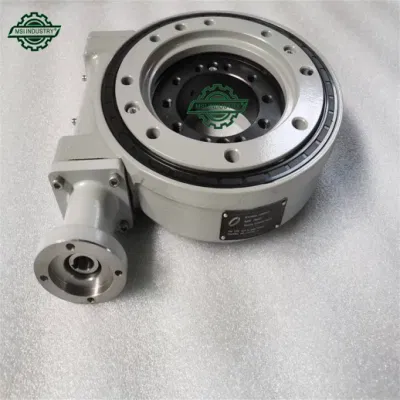

Socare Slewing drive is a special bearing. And a slewing drive usually consist of slewing bearing, worm shaft, housing, bearing, motor and so on.

Motor drive the worm shaft, the outer ring of slewing bearing will rotate, the outer ring output the torque through flange while the inner ring of slewing bearing is fixed in housing.
Installation space savings advantages to a greater extent.

Professional Slewing Bearing Yaw Bearing Slewing Drives Worm Drive Application:

Slewing drives are widely used in aerospace area, solar power systems, wind turbines, satellite broadcasting system, and engineering machinery like truck cranes, and man lifts, etc. Recently years, it has been prosperously used in photovoltaic power generation systems, special vehicle, heavy-duty flat-panel truck, container cranes, truck mounted crane, automobile crane and aerial vehicles, cranes, gantry cranes, small wind power stations, space communications, satellite receiver, etc.

Our Advantages

Our Advantage:
1. Double skeleton oil seal structure, sealing performance reaches IP65, which can meet long-term outdoor use.

2. The surface of the slewing bearing adopts high-quality galvanized or QPQ treatment process, which has good corrosion resistance.

3.  Worm gear meshing, high precision, large tooth contact area, high transmission torque, suitable for low speed and high torque applications.

4.  Customized solutions to meet different application conditions.
Professional Slewing Bearing Yaw Bearing Slewing Drives Worm Drive

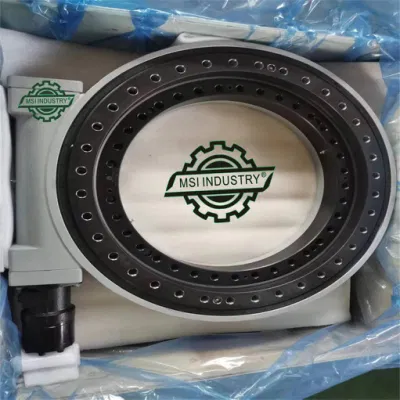

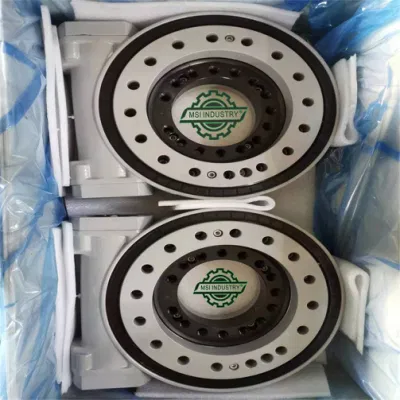

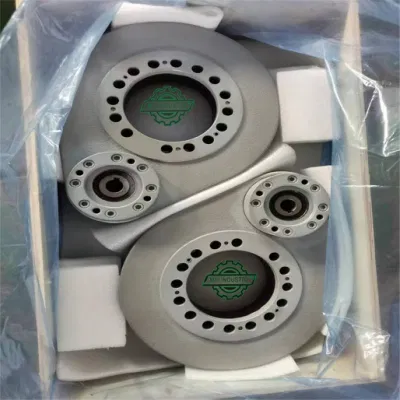

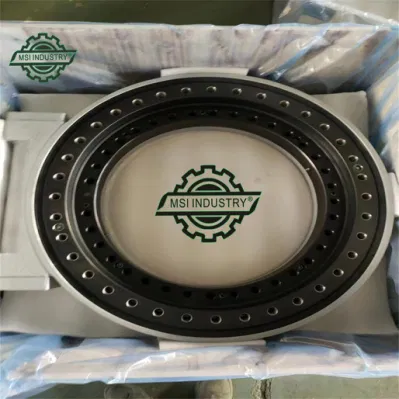

Packaging & Shipping
