Variation Mechanical Speed Variator Gearbox

Shop the best Variation Mechanical Speed Variator Gearbox at our factory. Our products are engineered for high performance and durability. Buy now!
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
Overview

Basic Info.

Model NO.
JWB
Type
Speed Variator
Keywords
Mechanical Speed Variator
Output Shaft Dia.
φ42, φ55, φ70
Output Torque
1002-40n.M
Power
0.18kw-7.5kw
Transport Package
Plywood Case, Carton Box
Specification
ISO, CQC, CCC
Trademark
Starshine Drive
Origin
Foshan, China
HS Code
8483409000
Production Capacity
5000PCS Per Month

Product Description

Product Description

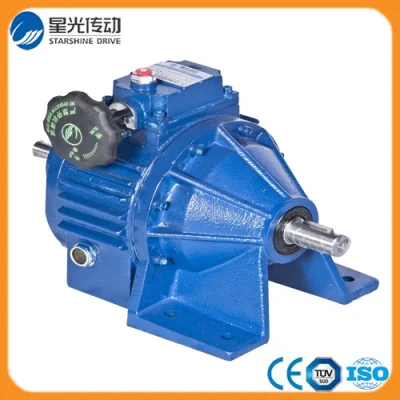

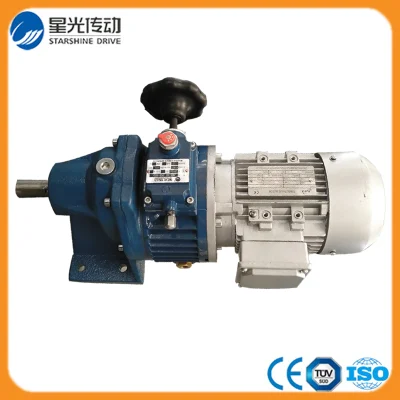

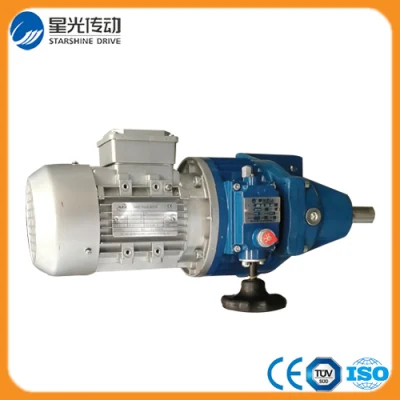

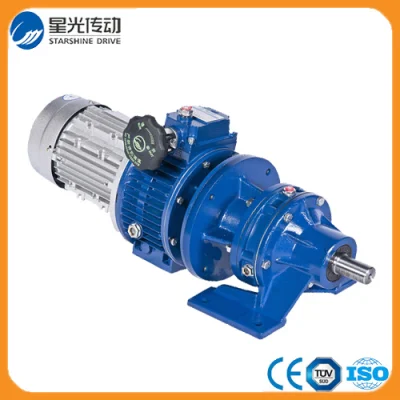

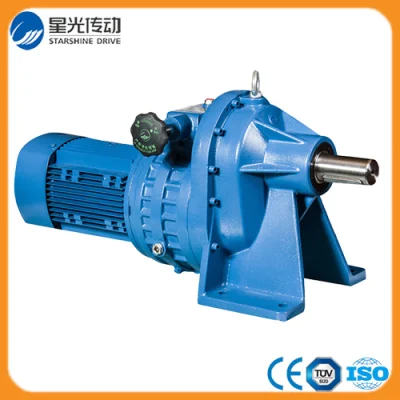

JWB Series Speed Variator

1. Features:

 JWB-X  type

  • Sizes: 04
  • Power up to 1.5 kW or more
  • Cases in RAL 5010 blue cast iron
  • Shafts: case hardened and tempered steel.
  • Internal components: heat-treated steel
  • Output speed with 4 pole(1400r/min) motors: 2-10r/min;4.7-23.5r/min;15-75r/min;20-100r/min, 28-140r/min, 30-150r/min;40-200r/min;60-300r/min;80-400r/min;100-500r/min;190-950r/min.
  • Output Torque value max 1002Nm
  • Silent, vibration-free running
  • Bidirectional rotation
  • Control handwheel positionable on either side
  • Slipping speed to max load at 5%
  • Regulation sensibility: 0,5 rpm
  • Painted with blue epoxy-polyester powder

 JWB-X B type

  • Sizes:01,02,03 and 04
  • Power up to 1.5 kW or less
  • Cases in die-cast aluminium alloy
  • Shafts: case hardened and tempered steel.
  • Internal components: heat-treated steel
  • Output speed with 4 pole(1400r/min) motors: 2r/min-20r/min;4.7r/min-23.5r/min;6.5-32.5r/min, 8-40r/min, 9-45r/min, 13-65r/min, 15r/min-75r/min;18-90r/min, 25-125r/min, 28r/min-140r/min;40r/min-200r/min;60r/min-300r/min;80r/min-400r/min;100r/min-500r/min;190r/min-950r/min.
  • Output Torque value max 795 Nm
  • Silent, vibration-free running
  • Bidirectional rotation
  • Control hand wheel positionable on either side
  • Slipping speed to max load at 5%
  • Regulation sensibility: 0,5 rpm
  • Painted with blue epoxy-polyester powder
Variation Mechanical Speed Variator Gearbox


2. Technical parameters


Type Output Torque Output Shaft Dia.   Output Speed Range 2rpm-950rpm
SWB01 2.6-1.6N.m φ11 Applicable Motor Power 0.18kW-7.5kW
SWB02 258-1.8N.m φ14,φ24,φ28,φ32
SWB03 426-4N.m φ24,φ28,φ38 Input Options With Inline AC Motor
SWB04 795-8N.m φ28,φ38,φ42 With IEC Motor
SWB05 535-16N.m φ38,φ48,φ55 With Input Shaft
SWB06 1002-40N.m φ42,φ55,φ70 With Input Flange


About Us

Variation Mechanical Speed Variator Gearbox
Guangdong Starshine Drive Co.,Ltd,the predecessor was a state-owned military mould enterprise, was established in 1965. Starshine specializes in the complete power transmission solution for high-end equipment manufacturing industries based on the aim of "Platform Product, Application Design and Professional Service".
Starshine have a strong technical force with over 350 employees at present, including over 30 engineering technicians, 30 quality inspectors, covering an area of 80000 square meters and kinds of advanced processing machines and testing equipments. We have a good foundation for the industry application development and service of high-end speed reducers & variators owning to the provincial engineering technology research center,the lab of gear speed reducers, and the base of modern R&D.

Variation Mechanical Speed Variator Gearbox

Our Team
Variation Mechanical Speed Variator Gearbox

Quality Control
Quality:Insist on Improvement,Strive for Excellence With the development of equipment manufacturing indurstry,customer never satirsfy with the current quality of our products,on the contrary,wcreate the value of quality.
Quality policy:to enhance the overall level in the field of power transmission
Quality View:Continuous Improvement , pursuit of excellence
Quality Philosophy:Quality creates value
Variation Mechanical Speed Variator Gearbox

Variation Mechanical Speed Variator Gearbox
3. Incoming Quality Control
To establish the AQL acceptable level of incoming material control, to provide the material for the whole inspection, sampling, immunity. On the acceptance of qualified products to warehousing, substandard goods to take return, check, rework, rework inspection; responsible for tracking bad, to monitor the supplier to take corrective
measures to prevent recurrence.

4. Process Quality Control
The manufacturing site of the first examination, inspection and final inspection, sampling according to the requirements of some projects, judging the quality change trend;
 found abnormal phenomenon of manufacturing, and supervise the production department to improve, eliminate the abnormal phenomenon or state.

5. FQC(Final QC)
After the manufacturing department will complete the product, stand in the customer's position on the finished product quality verification, in order to ensure the quality of
customer expectations and needs.

6. OQC(Outgoing QC)
After the product sample inspection to determine the qualified, allowing storage, but when the finished product from the warehouse before the formal delivery of the goods, there is a check, this is called the shipment inspection.Check content:In the warehouse storage and transfer status to confirm, while confirming the delivery of the
product is a product inspection to determine the qualified products.

7. Certification.
