Xw8 Electric Operated Worm Gear Operator for Valves

Looking for an electric operated worm gear operator for valves? Look no further! Xw8 is a top choice. We are a factory specializing in high-quality valve automation solutions.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
XW8
Trademark
ROYSOL
Origin
Wenzhou, Zhejiang, China
HS Code
8483409000
Production Capacity
100, 000

Product Description


Model:XW8 electric operated worm gearbox

Model Electric Output Torque N·m Ratio Electric  Input Torque  N·m Input Flange    ISO5210-2001 Standard Base Output Flange Thickened Base Output Flange Maximum Stem Diameter  mm Input Shaft Diametermm  APPROX. Weight      kg
XW3 800 58 46 F10/F14 F12 F10/F12/F14 43 15 15
XW4 1700 68 83 F10/F14 F14 F12/F14/F16 52 20 23
XW5 3000 67 149 F10/F14/F16 F16 F14/F16/F25 76 20 50
XW6 7000 69 338 F14/F16 F25 F16/F25/F30 87 30 83
XW7 16000 60 889 F14/F16/F25 F25/F30 F35 120 30 144
XW8 28000 60 1556 F14/F16/F25 F25/F30/F35 F40 153 35 254
XW9 40000 60 2222 F14/F16/F25 F30/F35 F40/F48 170 40 327
XW10 65000 60 3611 F16/F25/F30 F35/F40 F48 190 50 493



Introduction
XBURS XW series Part-turn Worm Gearbox is precison device(rotary) with high quality and safety,intended to reduce the speed and increase thetorque. It is easy to process axis hole and key groove because of the removable sleeve.

Characters
1.Totally enclosed gearing
2.Grease filled for longer life
3.Comprehensive gear ratios for different
applications
4.Removable output sleeve
5.Optional travelling sleeve
6.Adjustable stopper (± 5°)
7.Optional flange to suit for different type of valve

Application
XW series part-turn worm gearboxes are used for manual and electric (electric actuator) applications of ball valves,butterfly valves, plug valves and dampers.

Operating Environment
XW series part-turn worm gearboxes are with good mechnical quality and steady operating performance which apply to deal with variety climate and temperature. We strive to develop RW series worm gear operator to meet higher demands.

Enclosure: IP67
Working Temperature: Form-40ºCto120ºC(-40ºFto248ºF)
Painting: Silver grey (customization)

Connect With Valve
The flange connecting to valve is according to ENISO5210 or DIN3210 (Customization)


Main Products

Worm gearbox, bevel gearbox, valve gear box,worm gear operator, worm gear actuator, valve worm gear, valve gear operator, valve gear actuator, valve actuator.
Gear Operator, Valve Gearbox, Bevel Gearbox, Gearbox, Speed Reducer, Multi-Turn Bevel Gearbox, Bevel Gearbox Supplier, High Quality Bevel Gearbox, Gearbox manufacturer

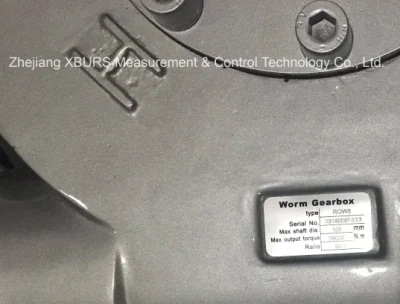

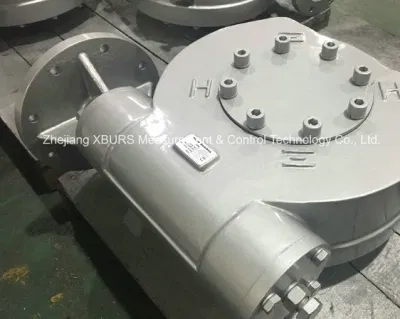

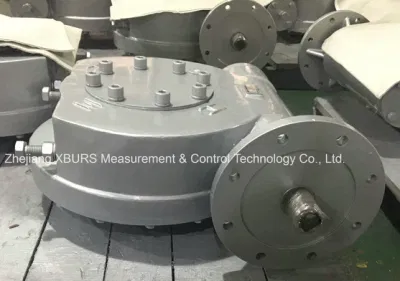

Xw8 Electric Operated Worm Gear Operator for Valves Xw8 Electric Operated Worm Gear Operator for Valves Xw8 Electric Operated Worm Gear Operator for Valves
(XW8-R6M)
