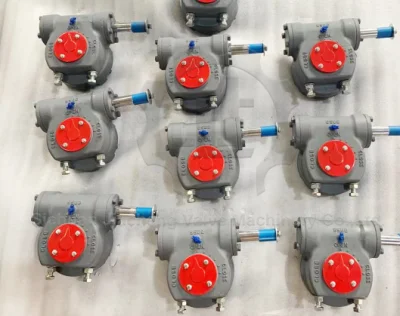

Yj Manual Type Valve Worm Gear Operator

Get high-quality Yj Manual Type Valve Worm Gear Operator at our factory. We produce reliable and durable valve accessories for various industrial applications.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product Parameters
  • Company Profile
  • FAQ
Overview

Basic Info.

Model NO.
YJ
Material
Ductile Iron, Carbon Steel (Customizable)
Painting
Black, Blue, Grey (Customizable)
Transport Package
Plywood Case
Specification
Depends on valves size
Origin
Sichuan, China
HS Code
8483409090
Production Capacity
50000

Product Description

Product Description

YJ series Part-turn worm gearboxes suitable for Ball Valves, Butterfly Valves, Plug Valves,etc. Handwheel can choose according to your requirements.


YJ series part-turn worm gearbox has good mechanical quality and steady operating performance. It has high mechanical efficiency, small size with new design, and it's very easy to operate. The flange connecting to valve is according to ISO5211.

Product Parameters

Model YJ-0 YJ-1 YJ-2 YJ-2J YJ-3 YJ-3J YJ-4 YJ-4J YJ-5 YJ-5J YJ-6
Ratio 34:1 44:1 44:1 50:1 50:1 53:1 55:1 67:1 62:1 67:1 65:1
Max output torque
N.m
500 1000 1500 2500 3200 4500 4950 5200 5580 6030 6825
Max stem diameter 30
8×7
42
12×8
50
14×9
60
18×11
60
18×11
75
25×14
90
22×14
110
28×16
110
28×16
120
32×18
120
32×18
Flange F10 F12 F14 F16 F16 F16/F20 F25 F30 F30 F35 F35
φD 125 150 175 210 210 250 300 350 350 415 415
PCD D0 102 125 140 165 165 205 254 298 298 356 356
N-H-DP 4-M10-15 4-M12-18 4-M16-20 4-M20-30 4-M20-30 8-M16-24 8-M16-24 8-M20-30 8-M20-30 8-M30-45 8-M30-40
Handwheel 250 350 400 450 500 600 600 650 750 800 900

Company Profile



Yj Manual Type Valve Worm Gear OperatorYj Manual Type Valve Worm Gear OperatorYj Manual Type Valve Worm Gear Operator
FAQ


Q: What's your main products?
A: Our main products are worm gearbox, bevel gearbox and spur gearbox for gate valve, globe valve, ball valve, butterfly valve and etc.

Q: How long is your delivery time?
A: Delivery time was depends on the quantity of the order and our inventory, normally is 10~15 days.

Q: Term of payment?
A: T/T 30% in advance, T/T balance before shipment.

Q: Can you provide free sample?
A: Yes, we can provide the sample for free, but the shipping costs need paid by yourself.

Q: Could you specially design and produce according to client's requirements?
A: Yes, we can

If any other questions about our products, welcome to contact us.
