Yj-Ss Series Manual Type Part-Turn Valve Worm Gearbox

Discover high-quality Yj-Ss Series Manual Type Part-Turn Valve Worm Gearbox at our factory. Durable, efficient, and reliable. Order now!
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product Parameters
  • Company Profile
  • FAQ
Overview

Basic Info.

Model NO.
YJ-SS
Output Torque
7500nm to 850000nm
Transport Package
Plywood Case
Specification
Depends on valves size
Origin
Sichuan, China
HS Code
8483409090
Production Capacity
50000

Product Description

Product Description

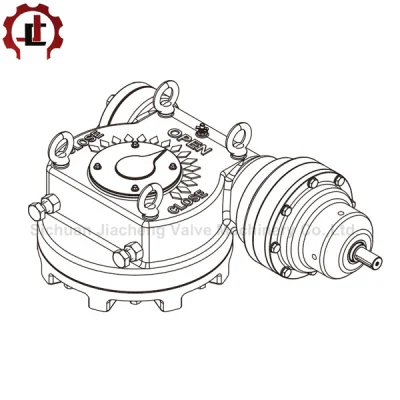

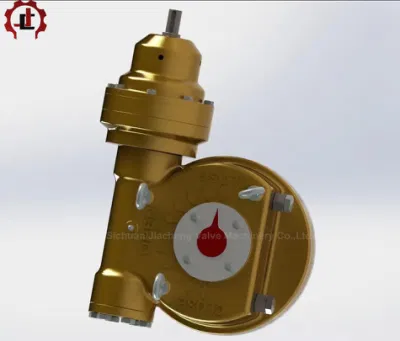

YJ-SS series Part-turn worm gearboxes suitable for Ball Valves, Butterfly Valves, Plug Valves,etc. Handwheel can choose according to your requirements.


YJ-SS series part-turn worm gearbox adopts the structure of worm gear and spur gear reducer, with high output torque and low noise and stable operation. The two speed ratios can be switched at will. When opening and closing the valve, you can use a high speed ratio to output high torque to open and close the valve. When the valve pressure is relieved, you can use a low speed ratio to quickly run the valve. The number of open and close turns can be adjusted in combination with different valves requirements.

Product Parameters



Model YJ-3J
-SS
YJ-4
-SS
YJ-4J
-SS
YJ-5
-SS
YJ-5J
-SS
YJ-6
-SS
YJ-6J
-SS
YJ-7
-SS
YJ-7X
-SS
YJ-7J
-SS
YJ-8
-SS
YJ-8J
-SS
YJ-9
-SS
YJ-9J
-SS
YJ-10
-SS
YJ-11
-SS
YJ-12
-SS
Ratio 53:1 55:1 57:1 228:1 301:1 306:1 433:1 568:1 722:1 940:1 1316:1 1252:1 1646:1 2210:1 2840:1 3080:1 4025:1
Ratio 265:1 378:1 625:1 958:1 1266:1 1285:1 1820:1 2386:1 3030:1 3950:1 5530:1 7510:1 9880:1 13260:1 17045:1 24620:1 32200:1
Max output torque N.m 7500 10000 16500 23000 28000 32000 48000 63000 80000 100000 140000 190000 250000 350000 450000 650000 850000
Flange F20 F25 F30 F30 F35 F35 F40 F40 F48 F48 F48 F60 F60 F60 F80 F100 F100
φD 250 300 350 350 415 415 475 475 560 560 560 686 686 686 900 1200 1200
PCD D0 205 254 298 298 356 356 406 406 483 483 483 603 603 603 813 1042 1042
N-H-DP 8-M16-24 8-M16-24 8-M20-30 8-M20-30 8-M30-45 8-M30-40 8-M36-54 8-M36-54 12-M36-54 12-M36-54 12-M36-54 20-M36-54 20-M36-54 20-M36-54 20-M42-54 32-M42-54 32-M42-54
Max stem diameter 75
22×14
90
25×14
110
28×16
110
28×16
120
32×18
120
32×18
145
40×22
160
40×22
170
45×25
180
45×25
180
45×25
210
50×28
220
50×28
270
63×32
300
70×36
380
80×40
420
90×45

Company Profile




Yj-Ss Series Manual Type Part-Turn Valve Worm Gearbox Yj-Ss Series Manual Type Part-Turn Valve Worm Gearbox Yj-Ss Series Manual Type Part-Turn Valve Worm Gearbox
FAQ


Q: What's your main products?
A: Our main products are worm gearbox, bevel gearbox and spur gearbox for gate valve, globe valve, ball valve, butterfly valve and etc.

Q: How long is your delivery time?
A: Delivery time was depends on the quantity of the order and our inventory, normally is 10~15 days.

Q: Term of payment?
A: T/T 30% in advance, T/T balance before shipment.

Q: Can you provide free sample?
A: Yes, we can provide the sample for free, but the shipping costs need paid by yourself.

Q: Could you specially design and produce according to client's requirements?
A: Yes, we can

If any other questions about our products, welcome to contact us.
